| ब्रांड नाम: | Cenlee |

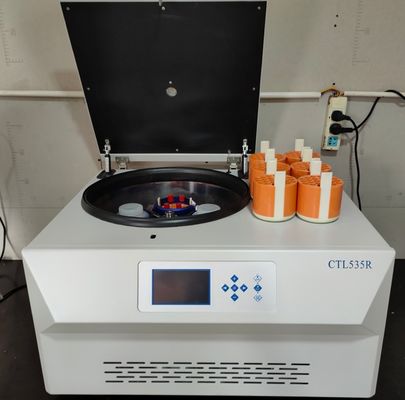

| मॉडल संख्या: | CTL535R |
| एमओक्यू: | 1 |
| Model | CTL535R | Temperature Accuracy | ±1℃ |
|---|---|---|---|
| Maximum Speed | 5350r/min | Timing Range | 0-999min |
| Maximum RCF | 5030×g | Power Supply | AC 220V 50Hz 18A |
| Maximum Capacity | 3000ml | Machine Noise | ≤55dB(A) |
| Speed Accuracy | ±20r/min | Dimensions | 700×660×410mm |
| Power | 1100W | Chamber Diameter | Φ420 |
| Temperature Range | -20℃~+40℃ | Net Weight | 95kg |
| Rotor Type | No. | Capacity | Max Speed (r/min) | Max RCF (×g) |
|---|---|---|---|---|
| Main machine | CTL535R | 5350 | 5030 | |
| Angle rotor | NO.1 | 6×50ml | 5350 | 5030 |

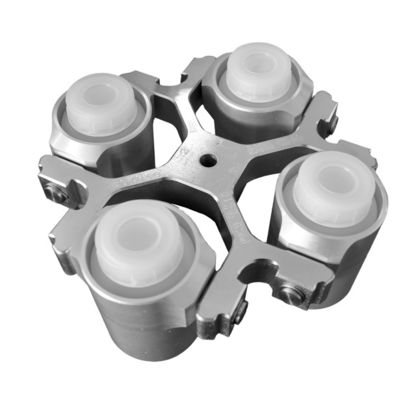

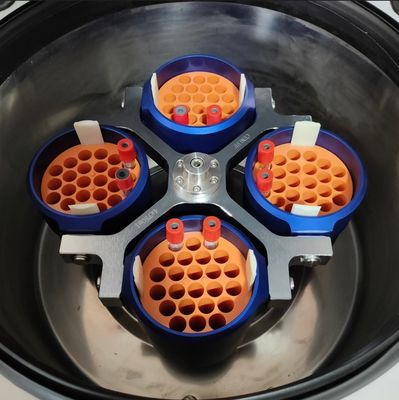

| Swing rotor | NO.2 | 4×500ml | 4000 | 3040 |
|
Test cup: 4×500ml Adapter: 4×19×5ml, 4×9×15ml Adapter NO.2: 4×7×20ml, 4×3×50ml, 4×300ml, 4×100ml Swing cup: 4×24×5ml(vacuum tube), 4×37×7ml(vacuum tube) Micro plate rotor: 4×2×96 Well Square buckets: 4x Buckets Adapter: 4×250ml, 4×4×50ml (cone form bottom), 4×4×50ml (Round bottom), 4×25×1.5ml, 4×10×15ml (cone form bottom), 4×10×15ml (Round bottom), 4×20×10ml, 4×28×5ml |
||||
| Swing rotor | NO.3 | 4×750ml | 4000 | 3500 |
|
Swing test cup: 4×750ml Adaptor: 4×500ml (cone form bottom), 4×300ml, 4×500ml, 4×2×100ml, 4×10×20ml Adaptor NO.4: 4×4×50ml (cone form bottom), 4×4×50ml, 4×14×15ml (cone form bottom), 4×19×15ml, 4×24×7ml, 4×37×5ml |
||||
| Swing rotor | NO.5 | 4×250ml | 4200 | 3500 |
|
Swing test cup: 4×250ml Adaptor: 4×7×10ml, 4×10×5ml, 4×4×20ml, 4×100ml, 4×6×15ml, 4×4×15ml (cone form bottom) Adaptor NO.6: 4×50ml (cone form bottom), 4×50ml, 4×8×1.5ml |
||||
| Micro plate rotor | NO.7 | 2×2×96 Well | 4000 | 2200 |
